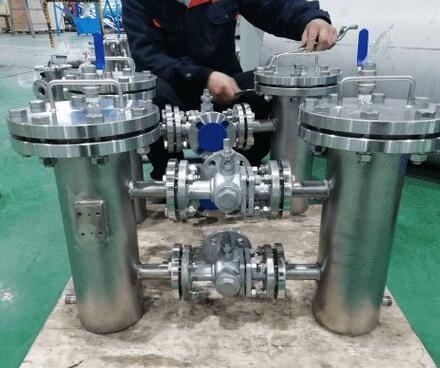

SDRLF series high flow duplex return filter
SDRLF high-flow duplex oil return filter is composed of two single-barrel filters and two-position six-position directional valve, which is simple in structure and easy to use, and is equipped with bypass valve and filter element pollutant blocking transmitter to ensure the system, which is widely used in hydraulic systems such as heavy machinery, mining machinery, and metallurgical machinery.
Category:
Power station valves
Keyword:
Description
1Product Introduction
SDRLF high-flow duplex oil return filter is composed of two single-barrel filters and two-position six-position directional valve, which is simple in structure and easy to use, and is equipped with bypass valve and filter element pollutant blocking transmitter to ensure the system, which is widely used in hydraulic systems such as heavy machinery, mining machinery, and metallurgical machinery.
2Product features
It is installed in the oil return pipeline of the hydraulic system to filter out solid particles and colloidal substances in the working medium, and effectively control the pollution degree of the working medium.
The filter is composed of two single-barrel filters, two-position six-way directional valve, bypass valve, transmitter, etc., which can enable the system to replace the filter element without stopping, which is suitable for continuous working hydraulic systems.
The filter material of the filter element is made of composite inorganic fiber, stainless steel woven mesh and stainless steel fiber felt, which can be selected according to the specific situation.
The filter housing material is low carbon steel, which can also be processed by stainless steel as needed, and the working temperature is -30~110 °C.
3Product performance
| Model | Nominal flow L/min | Filtration accuracy μm | Nominal pressure (max) Mpa | Signaling differential pressure MPA | The bypass valve opens the differential pressure Mpa | Filter element model | Number of filter elements |
| SDRLF-A1300×*P | 1300 | 3 5 10 20 30 | 1.6 | 0.2 | 0.3 | 1300R* BN3HC | 1×2 |
| SDRLF-A2600×*P | 2600 | 2×2 | |||||
| SDRLF-A3900×*P | 3900 | 3×2 | |||||
| SDRLF-A6500×*P | 6500 | 5×2 | |||||
| SDRLF-A7800×*P | 7800 | 6×2 | |||||
| SDRLF-A9100×*P | 9100 | 7×2 |
